JAC KR SERIES

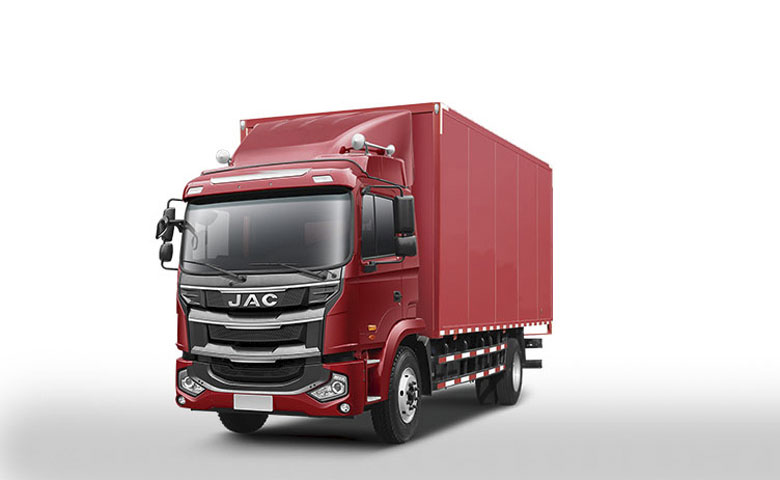

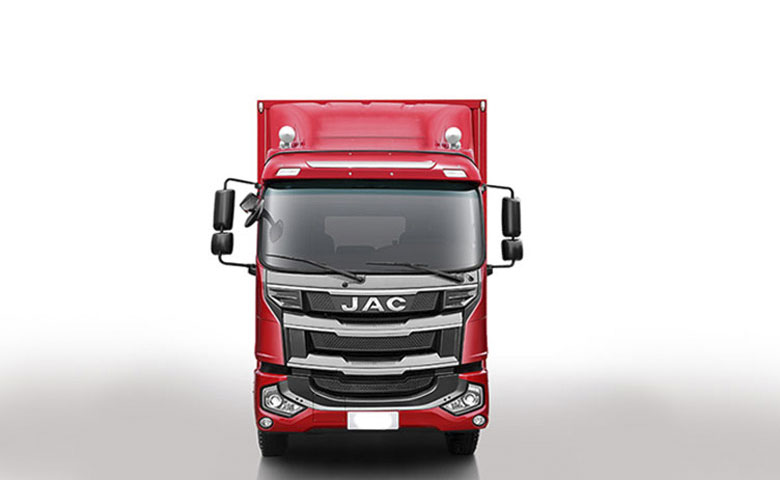

The JAC KR1 has proven itself to be a very useful cargo truck for transporting heavy loads within its rating or for transporting voluminous items. The KR1 has China’s top technology integrated into it, it has a stylish exterior designed and developed by JAC’s Italian Design Center, and it has a sleek and modern interior designed by JAC’s Japanese Design Center. Its powerful and reliable engine is made by Cummins. The JAC KR1 has all the attributes to satisfy even the most demanding user.

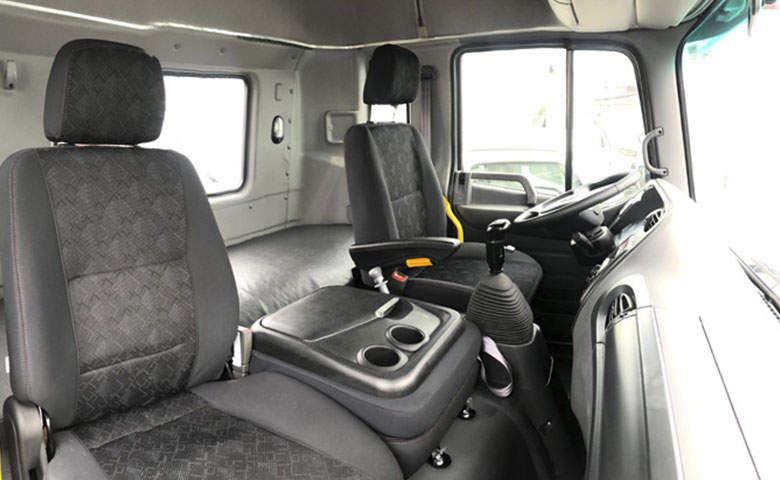

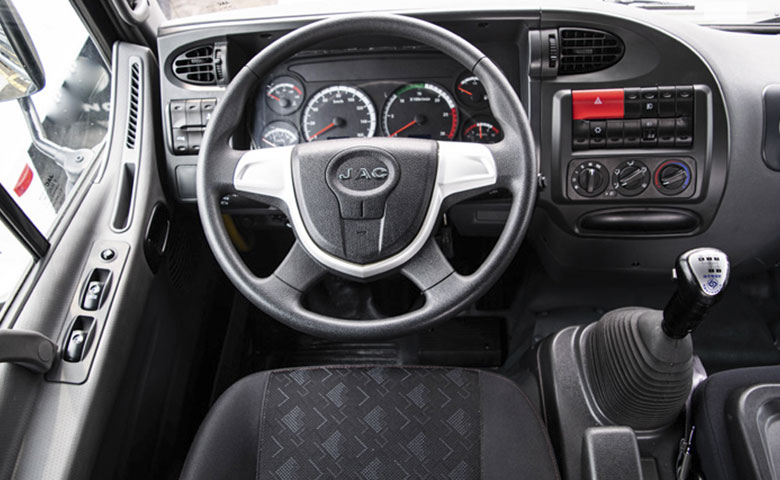

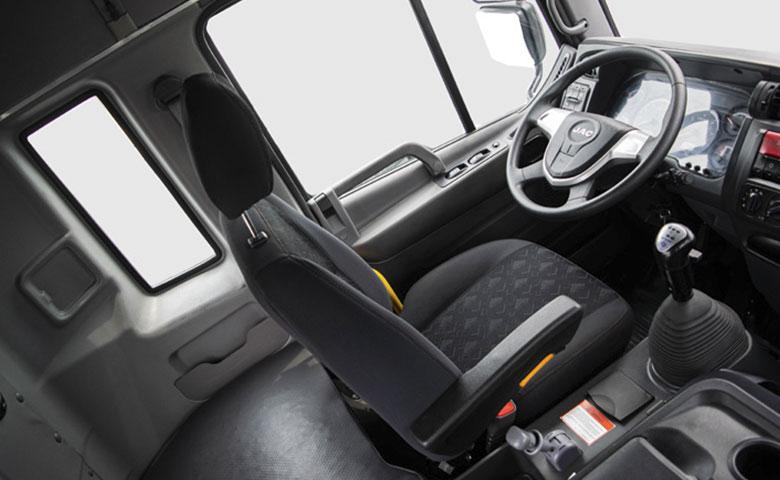

Interior
The interior of the JAC KR1 can comfortably seat 3 persons with durable cloth covered seats. It includes an AM/FM radio, power windows and locks, steering wheel tilt, and electric side view mirrors.

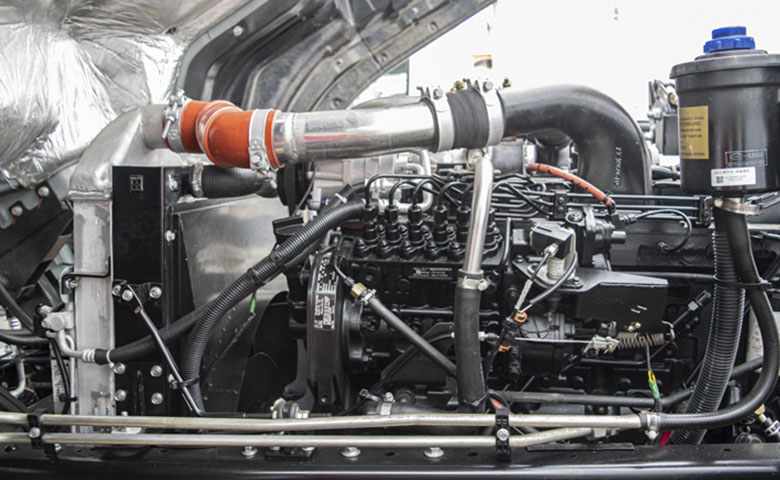

Engine
The KR1 is powered by the legendary engine maker Cummins.
SPECIFICATIONS
JAC MIDSIZE & FULL SIZE TRUCK BROCHURE
JAC KR1 (12 Ton)
| CONFIGURATION | Single Cab |
|---|---|
| WHEEL DRIVE | 4X2 |
| RATINGS & PERFORMANCE CHARACTERISTICS | |
| Gross Vehicle Mass (GVM) | 16,900kg (37,180lbs) |
| Rated Load Capacity | 12 tons |
| Gradeability @ GVM | 38% |
| Engine Compliance | Euro 2 |
| Year | 2021 |
| ENGINE | |
| Engine Model | CUMMINS C230-20 |
| Maximum Power | 230hp @ 2,200rpm |
| Maximum Torque | 861Nm @ 1,300rpm |
| Maximum Engine Speed | 2,200rpm |
| Type | Diesel, 6 cylinder in-line |
| Piston Displacement | 8.3L |
| Fuel Injection System | Electronic control Common Rail |
| Air Intake System | Turbo-intercooled |
| TRANSMISSION/CLUTCH | |
| Transmission | Mechanical, 8 speed forward + reverse |
| Clutch | Dry Single plate with damper springs |
| SUSPENSION/AXLES | |
| Front Suspension | Semi-elliptic leaf springs with shock absorbers |
| Rear Suspension | Semi-elliptic leaf springs with shock absorbers |
| BRAKES | |
| Service Brakes | Air |
| Front Service Brakes | Drum |
| Rear Service Brakes | Drum |
| ABS System | N |
| Parking Break | Yes |
| Exhaust Brake | Yes |
| GENERAL | |
| Cab + Chassis Overall Dimensions (L*W*H) | 8845mm*2350mm*3019mm |
| Distance with Axles | 5,300mm |
| Recommended Box or Bed Length | 21ft |
| Tire Size (STD) | 11R22.5-16PR |
| Spare Tire | Yes |
| Alternator | 24V-7.5KW |
| Batteries | 2*12V |
| Fuel Tank Capacity | 53 US Gallons |
| Daytime Running Lamp | LED |
| Fog Lights | Yes |
| INTERIOR FEATURES | |
| Seating Capacity | 3 |
| Air Conditioning | Yes |
| Sun Visor | Driver and assistant |
| Steering Wheel Controls | No |
| Steering | Telescopic and tilt steering, recirculating ball with hydraulic booster |
| Electric Windows | No |
| Wiper Control Switch | Yes |
| Central Locking | No |
| Noise Insulation | Yes |
| Seat Cover Material | Cloth |
| Driver Seat Adjustability | Manual |
| Audio | AM/FM Radio, CD Player |
| Dash Lights Control Switch | Yes |
| Instruments | Speedometer, Engine Tachometer, Odometer, Fuel Guage, Coolant Temperature Guage |
