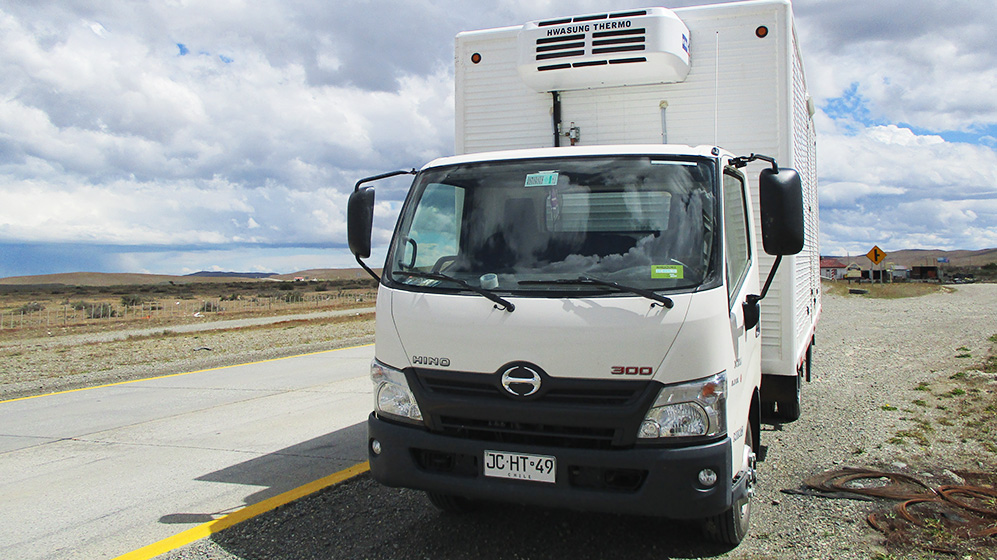

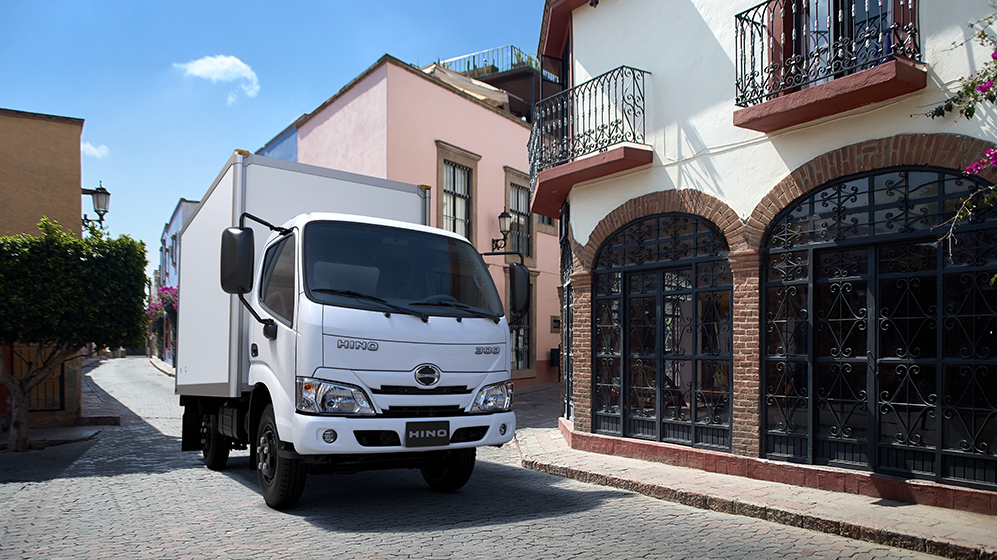

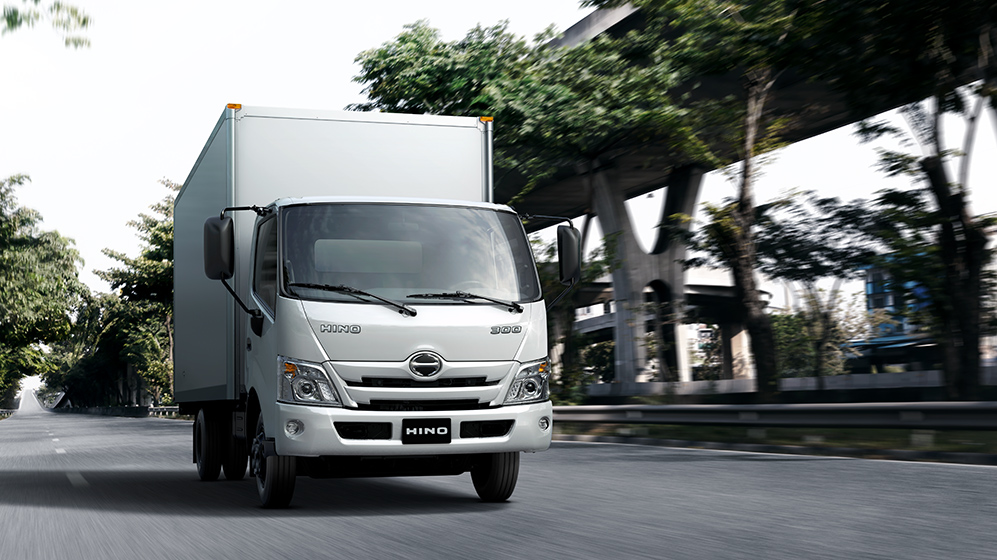

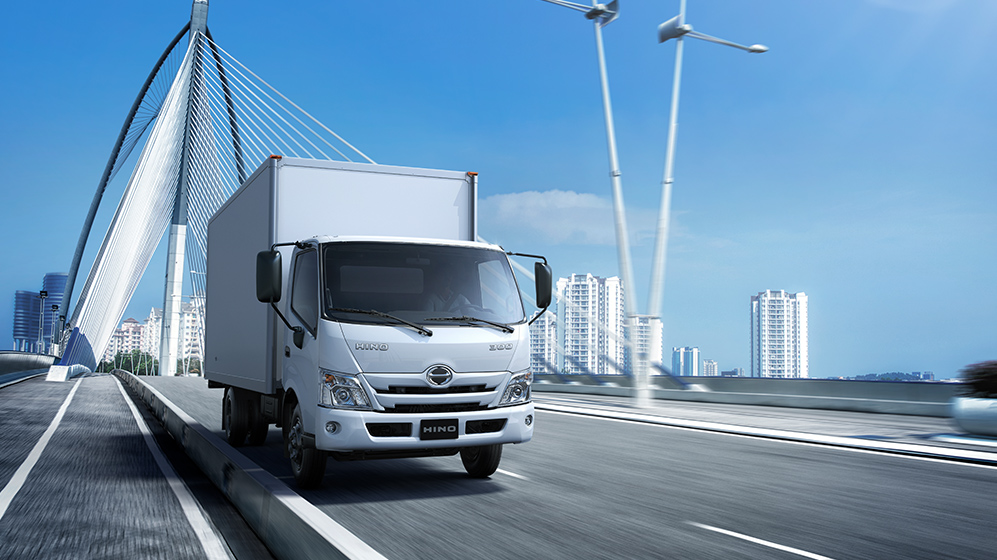

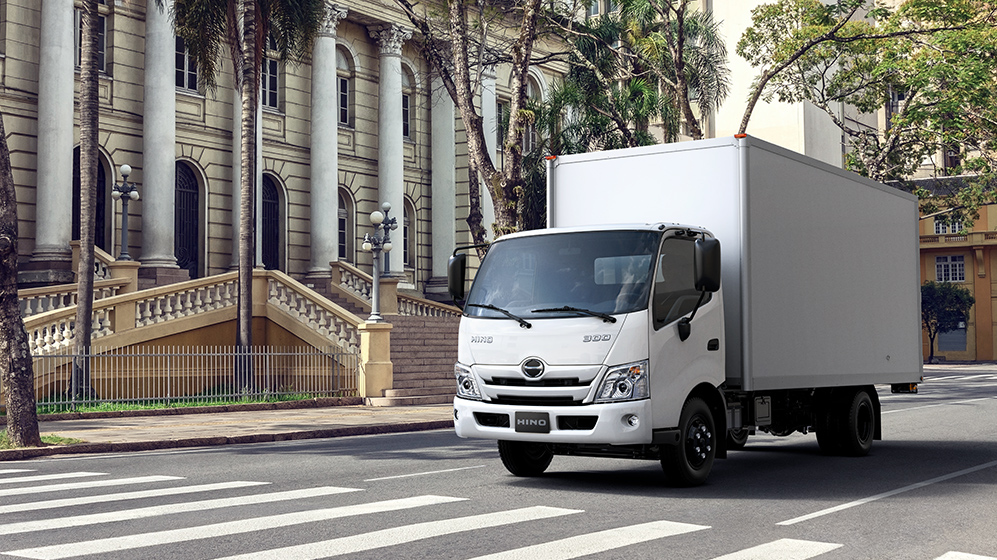

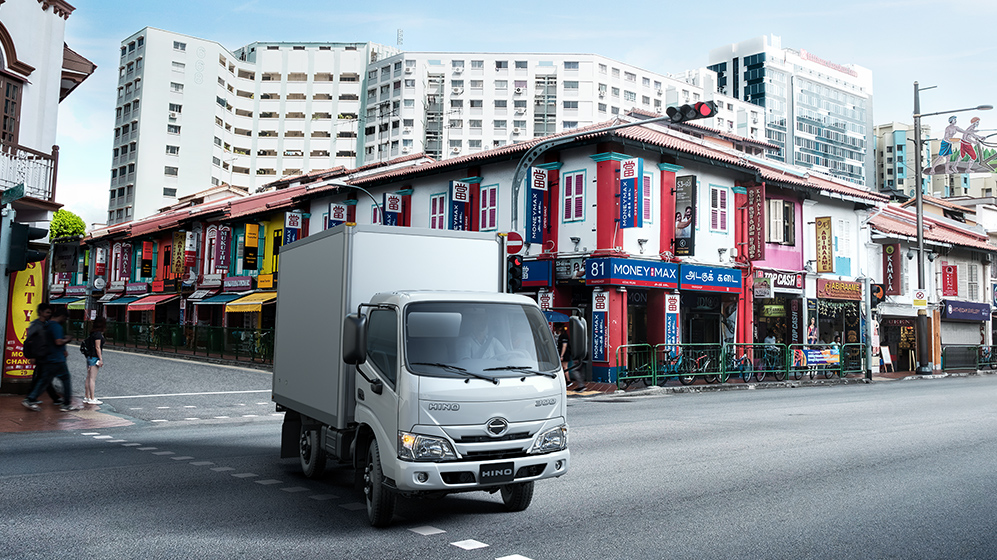

HINO 300 Series
The Hino 300 Series offer customers class leading levels of safety, power and efficiency while also delivering benchmark levels of on-road performance and superior levels of interior ergonomics and comfort.
With more than 60 models including Standard, Wide or Crew Cab variants, high horsepower or Hybrid electric-diesel models, and the Built to Go factory tippers, Steel tray and Alloy tray models, Hino have a 300 Series light-duty truck to suit your needs.
VR of Interior
SPECIFICATIONS
HINO BROCHURE
HINO XZU650L-MM (3.4ton, 14ft Chassis)
| CONFIGURATION | On Road Wide Cab |
|---|---|
| WHEEL DRIVE | 4X2 |
| RATINGS & PERFORMANCE CHARACTERISTICS | |
| Gross Vehicle Mass (GVM) | 5,500kg (12,100lbs) |
| Rated Load Capacity | 3.4 tons |
| Maximum Speed @ GVM | 128km/h |
| Gradeability @ GVM | 48.5% |
| Engine Compliance | Euro 3 |
| Year | 2020 |
| ENGINE | |
| Engine Model | N04C-VB |
| Maximum Power | 160hp @ 2,800rpm |
| Maximum Torque | 420Nm @ 1,400rpm |
| Maximum Engine Speed | 3,100rpm |
| Type | Diesel, 4 cylinder in-line |
| Piston Displacement | 4.009L |
| Fuel Injection System | Electronic Control Common Rail |
| Air Intake System | Turbo-intercooled, stack type air intake |
| TRANSMISSION/CLUTCH | |
| Transmission | Mechanical, 5 speed forward + reverse |
| Clutch | Dry Single plate with damper springs |
| SUSPENSION/AXLES | |
| Front Suspension | Semi-elliptic leaf springs with shock absorbers |
| Rear Suspension | Semi-elliptic main and auxiliary leaf springs with shock absorbers |
| Front Axle | Reversed Elliot, "i" |
| Rear Axle | Full-floating, single reduction, single-speed by hypoid gearings |
| BRAKES | |
| Service Brakes | Hydraulic, air over hydraulic, dual circuit |
| Front Service Brakes | Drum |
| Rear Service Brakes | Drum |
| ABS System | Yes |
| Parking Break | Mechanical, acting on transmission output shaft |
| Exhaust Brake | Electric-pneumatic with valve in exhaust pipe |
| GENERAL | |
| Cab + Chassis Overall Dimensions (L*W*H) | 5965mm*1695mm*2140mm |
| Recommended Box or Bed Length | 14ft |
| Tire Size (STD) | 7.00R/16-10PR |
| Spare Tire | Yes |
| Alternator | 24V-60A |
| Batteries | 12V*2 |
| Fuel Tank Capacity | 100L (26.4 US Gallons) |
| SRS Air Bag | Driver |
| Fog Lights | Yes |
| INTERIOR FEATURES | |
| Seating Capacity | 3 |
| Air Conditioning | Yes |
| Sun Visor | Driver and assistant |
| Steering Wheel Controls | No |
| Steering | Telescopic and tilt steering, recirculating ball with hydraulic booster |
| Electric Windows | No |
| Wiper Control Switch | Yes |
| Central Locking | No |
| Noise Insulation | Yes |
| Seat Cover Material | Vinyl |
| Driver Seat Adjustability | Manual |
| Audio | AM/FM Radio, CD Player |
| Dash Lights Control Switch | Yes |
| Instruments | Speedometer, Engine Tachometer, Odometer, Fuel Guage, Coolant Temperature Guage |
HINO XZU710L-FQ (5.25ton, 15ft Chassis)
| CONFIGURATION | On Road Wide Cab |
|---|---|
| WHEEL DRIVE | 4X2 |
| RATINGS & PERFORMANCE CHARACTERISTICS | |
| Gross Vehicle Mass (GVM) | 7,000kg (15,400lbs) |
| Rated Load Capacity | 5.25 tons |
| Maximum Speed @ GVM | 130km/h |
| Gradeability @ GVM | 49% |
| Engine Compliance | Euro 3 |
| Year | 2020 |
| ENGINE | |
| Engine Model | N04C-VB |
| Maximum Power | 160hp @ 2,800rpm |
| Maximum Torque | 420Nm @ 1,400rpm |
| Maximum Engine Speed | 3,100rpm |
| Type | Diesel, 4 cylinder in-line |
| Piston Displacement | 4.009L |
| Fuel Injection System | Electronic Control Common Rail |
| Air Intake System | Turbo-intercooled, stack type air intake |
| TRANSMISSION/CLUTCH | |
| Transmission | Mechanical, 6 speed forward + reverse |
| Clutch | Dry Single plate with damper springs |
| SUSPENSION/AXLES | |
| Front Suspension | Semi-elliptic leaf springs with shock absorbers |
| Rear Suspension | Semi-elliptic main and auxiliary leaf springs with shock absorbers |
| Front Axle | Reversed Elliot, "i" |
| Rear Axle | Full-floating, single reduction, single-speed by hypoid gearings |
| BRAKES | |
| Service Brakes | Hydraulic, air over hydraulic, dual circuit |
| Front Service Brakes | Drum |
| Rear Service Brakes | Drum |
| ABS System | Yes |
| Parking Break | Mechanical, acting on transmission output shaft |
| Exhaust Brake | Electric-pneumatic with valve in exhaust pipe |
| GENERAL | |
| Cab + Chassis Overall Dimensions (L*W*H) | 6120mm*1995mm*2240mm |
| Recommended Box or Bed Length | 15ft |
| Tire Size (STD) | 215/75R17.5 |
| Spare Tire | Yes |
| Alternator | 24V-60A |
| Batteries | 12V*2 |
| Fuel Tank Capacity | 100L (26.4 US Gallons) |
| SRS Air Bag | Driver |
| Fog Lights | Yes |
| INTERIOR FEATURES | |
| Seating Capacity | 3 |
| Air Conditioning | Yes |
| Sun Visor | Driver and assistant |
| Steering Wheel Controls | No |
| Steering | Telescopic and tilt steering, recirculating ball with hydraulic booster |
| Electric Windows | No |
| Wiper Control Switch | Yes |
| Central Locking | No |
| Noise Insulation | Yes |
| Seat Cover Material | Vinyl |
| Driver Seat Adjustability | Manual |
| Audio | AM/FM Radio, CD Player |
| Dash Lights Control Switch | Yes |
| Instruments | Speedometer, Engine Tachometer, Odometer, Fuel Guage, Coolant Temperature Guage |
HINO XZU720L-FT (6ton, 17ft Chassis)
| CONFIGURATION | On Road Wide Cab |
|---|---|
| WHEEL DRIVE | 4X2 |
| RATINGS & PERFORMANCE CHARACTERISTICS | |
| Gross Vehicle Mass (GVM) | 8,500kg (18,700lbs) |
| Rated Load Capacity | 6 tons |
| Maximum Speed @ GVM | 130km/h |
| Gradeability @ GVM | 45% |
| Engine Compliance | Euro 3 |
| Year | 2020 |
| ENGINE | |
| Engine Model | N04C-VB |
| Maximum Power | 160hp @ 2,800rpm |
| Maximum Torque | 420Nm @ 1,400rpm |
| Maximum Engine Speed | 3,100rpm |
| Type | Diesel, 4 cylinder in-line |
| Piston Displacement | 4.009L |
| Fuel Injection System | Electronic Control Common Rail |
| Air Intake System | Turbo-intercooled, stack type air intake |
| TRANSMISSION/CLUTCH | |
| Transmission | Mechanical, 6 speed forward + reverse |
| Clutch | Dry Single plate with damper springs |
| SUSPENSION/AXLES | |
| Front Suspension | Semi-elliptic leaf springs with shock absorbers |
| Rear Suspension | Semi-elliptic main and auxiliary leaf springs with shock absorbers |
| Front Axle | Reversed Elliot, "i" |
| Rear Axle | Full-floating, single reduction, single-speed by hypoid gearings |
| BRAKES | |
| Service Brakes | Hydraulic, air over hydraulic, dual circuit |
| Front Service Brakes | Drum |
| Rear Service Brakes | Drum |
| ABS System | Yes |
| Parking Break | Mechanical, acting on transmission output shaft |
| Exhaust Brake | Electric-pneumatic with valve in exhaust pipe |
| GENERAL | |
| Cab + Chassis Overall Dimensions (L*W*H) | 6735mm*1995mm*2235mm |
| Recommended Box or Bed Length | 17ft |
| Tire Size (STD) | 215/75R17.5 - 126/124 |
| Spare Tire | Yes |
| Alternator | 24V-60A |
| Batteries | 12V*2 |
| Fuel Tank Capacity | 100L (26.4 US Gallons) |
| SRS Air Bag | Driver |
| Fog Lights | Yes |
| INTERIOR FEATURES | |
| Seating Capacity | 3 |
| Air Conditioning | Yes |
| Sun Visor | Driver and assistant |
| Steering Wheel Controls | No |
| Steering | Telescopic and tilt steering, recirculating ball with hydraulic booster |
| Electric Windows | No |
| Wiper Control Switch | Yes |
| Central Locking | No |
| Noise Insulation | Yes |
| Seat Cover Material | Vinyl |
| Driver Seat Adjustability | Manual |
| Audio | AM/FM Radio, CD Player |
| Dash Lights Control Switch | Yes |
| Instruments | Speedometer, Engine Tachometer, Odometer, Fuel Guage, Coolant Temperature Guage |
HINO XZU600L-ML (2.5ton)
| CONFIGURATION | On Road Narrow Cab |
|---|---|
| WHEEL DRIVE | 4X2 |
| RATINGS & PERFORMANCE CHARACTERISTICS | |
| Gross Vehicle Mass (GVM) | 4,500kg (12,100lbs) |
| Rated Load Capacity | 2.5 tons |
| Maximum Speed @ GVM | 120km/h |
| Gradeability @ GVM | 57.5% |
| Engine Compliance | Euro 3 |
| Year | 2022 |
| ENGINE | |
| Engine Model | N04C-WF |
| Maximum Power | 120hp @ 2,500rpm |
| Maximum Torque | 324Nm @ 1,600rpm |
| Maximum Engine Speed | 3,100rpm |
| Type | Diesel, 4 cylinder in-line |
| Piston Displacement | 4.009L |
| Fuel Injection System | Electronic Control Common Rail |
| Air Intake System | Turbo-intercooled, stack type air intake |
| TRANSMISSION/CLUTCH | |
| Transmission | Mechanical, 5 speed forward + reverse |
| Clutch | Dry Single plate with damper springs |
| SUSPENSION/AXLES | |
| Front Suspension | Semi-elliptic leaf springs with shock absorbers |
| Rear Suspension | Semi-elliptic main and auxiliary leaf springs with shock absorbers |
| Front Axle | Reversed Elliot, "i" |
| Rear Axle | Full-floating, single reduction, single-speed by hypoid gearings |
| BRAKES | |
| Service Brakes | Hydraulic, air over hydraulic, dual circuit |
| Front Service Brakes | Drum |
| Rear Service Brakes | Drum |
| ABS System | Yes |
| Parking Break | Mechanical, acting on transmission output shaft |
| Exhaust Brake | Electric-pneumatic with valve in exhaust pipe |
| GENERAL | |
| Cab + Chassis Overall Dimensions (L*W*H) | 4670mm*1695mm*2135mm |
| Recommended Box or Bed Length | 10ft |
| Tire Size (STD) | 7.00R/16-10PR |
| Spare Tire | Yes |
| Alternator | 24V-60A |
| Batteries | 12V*2 |
| Fuel Tank Capacity | 80L (21.1 US Gallons) |
| SRS Air Bag | Driver |
| Fog Lights | Yes |
| INTERIOR FEATURES | |
| Seating Capacity | 3 |
| Air Conditioning | Yes |
| Sun Visor | Driver and assistant |
| Steering Wheel Controls | No |
| Steering | Telescopic and tilt steering, recirculating ball with hydraulic booster |
| Electric Windows | No |
| Wiper Control Switch | Yes |
| Central Locking | No |
| Noise Insulation | Yes |
| Seat Cover Material | Vinyl |
| Driver Seat Adjustability | Manual |
| Audio | AM/FM Radio, CD Player |
| Dash Lights Control Switch | Yes |
| Instruments | Speedometer, Engine Tachometer, Odometer, Fuel Guage, Coolant Temperature Guage |
HINO XZU600L-MM (3.4ton)
| CONFIGURATION | On Road Narrow Cab |
|---|---|
| WHEEL DRIVE | 4X2 |
| RATINGS & PERFORMANCE CHARACTERISTICS | |
| Gross Vehicle Mass (GVM) | 6,000kg (13,200lbs) |
| Rated Load Capacity | 3.4 tons |
| Maximum Speed @ GVM | 115km/h |
| Gradeability @ GVM | 49.2% |
| Engine Compliance | Euro 3 |
| Year | 2022 |
| ENGINE | |
| Engine Model | N04C-WF |
| Maximum Power | 120hp @ 2,500rpm |
| Maximum Torque | 324Nm @ 1,600rpm |
| Maximum Engine Speed | 3,100rpm |
| Type | Diesel, 4 cylinder in-line |
| Piston Displacement | 4.009L |
| Fuel Injection System | Electronic Control Common Rail |
| Air Intake System | Turbo-intercooled, stack type air intake |
| TRANSMISSION/CLUTCH | |
| Transmission | Mechanical, 5 speed forward + reverse |
| Clutch | Dry Single plate with damper springs |
| SUSPENSION/AXLES | |
| Front Suspension | Semi-elliptic leaf springs with shock absorbers |
| Rear Suspension | Semi-elliptic main and auxiliary leaf springs with shock absorbers |
| Front Axle | Reversed Elliot, "i" |
| Rear Axle | Full-floating, single reduction, single-speed by hypoid gearings |
| BRAKES | |
| Service Brakes | Hydraulic, air over hydraulic, dual circuit |
| Front Service Brakes | Drum |
| Rear Service Brakes | Drum |
| ABS System | Yes |
| Parking Break | Mechanical, acting on transmission output shaft |
| Exhaust Brake | Electric-pneumatic with valve in exhaust pipe |
| GENERAL | |
| Cab + Chassis Overall Dimensions (L*W*H) | 4670mm*1695mm*2140mm |
| Recommended Box or Bed Length | 10ft |
| Tire Size (STD) | 7.00R/16-10PR |
| Spare Tire | Yes |
| Alternator | 24V-60A |
| Batteries | 12V*2 |
| Fuel Tank Capacity | 80L (21.1 US Gallons) |
| SRS Air Bag | Driver |
| Fog Lights | Yes |
| INTERIOR FEATURES | |
| Seating Capacity | 3 |
| Air Conditioning | Yes |
| Sun Visor | Driver and assistant |
| Steering Wheel Controls | No |
| Steering | Telescopic and tilt steering, recirculating ball with hydraulic booster |
| Electric Windows | No |
| Wiper Control Switch | Yes |
| Central Locking | No |
| Noise Insulation | Yes |
| Seat Cover Material | Vinyl |
| Driver Seat Adjustability | Manual |
| Audio | AM/FM Radio, CD Player |
| Dash Lights Control Switch | Yes |
| Instruments | Speedometer, Engine Tachometer, Odometer, Fuel Guage, Coolant Temperature Guage |
HINO XZU720L-FT (6ton)
| CONFIGURATION | On Road Wide Cab |
|---|---|
| WHEEL DRIVE | 4X2 |
| RATINGS & PERFORMANCE CHARACTERISTICS | |
| Gross Vehicle Mass (GVM) | 8,500kg (18,700lbs) |
| Rated Load Capacity | 6 tons |
| Maximum Speed @ GVM | 103km/h |
| Gradeability @ GVM | 45% |
| Engine Compliance | Euro 3 |
| Year | 2020 |
| ENGINE | |
| Engine Model | N04C-VB |
| Maximum Power | 160hp @ 2,800rpm |
| Maximum Torque | 430Nm @ 1,400rpm |
| Maximum Engine Speed | 3,100rpm |
| Type | Diesel, 4 cylinder in-line |
| Piston Displacement | 4.009L |
| Fuel Injection System | Electronic Control Common Rail |
| Air Intake System | Turbo-intercooled, stack type air intake |
| TRANSMISSION/CLUTCH | |
| Transmission | Mechanical, 6 speed forward + reverse |
| Clutch | Dry Single plate with damper springs |
| SUSPENSION/AXLES | |
| Front Suspension | Semi-elliptic leaf springs with shock absorbers |
| Rear Suspension | Semi-elliptic main and auxiliary leaf springs with shock absorbers |
| Front Axle | Reversed Elliot, "i" |
| Rear Axle | Full-floating, single reduction, single-speed by hypoid gearings |
| BRAKES | |
| Service Brakes | Hydraulic, air over hydraulic, dual circuit |
| Front Service Brakes | Drum |
| Rear Service Brakes | Drum |
| ABS System | Yes |
| Parking Break | Mechanical, acting on transmission output shaft |
| Exhaust Brake | Electric-pneumatic with valve in exhaust pipe |
| GENERAL | |
| Cab + Chassis Overall Dimensions (L*W*H) | 6735mm*1995mm*2235mm |
| Recommended Box or Bed Length | 17ft |
| Tire Size (STD) | 215/75R17.5-126/124 |
| Spare Tire | Yes |
| Alternator | 24V-60A |
| Batteries | 12V*2 |
| Fuel Tank Capacity | 100L (26.4 US Gallons) |
| SRS Air Bag | Driver |
| Fog Lights | Yes |
| INTERIOR FEATURES | |
| Seating Capacity | 3 |
| Air Conditioning | Yes |
| Sun Visor | Driver and assistant |
| Steering Wheel Controls | No |
| Steering | Telescopic and tilt steering, recirculating ball with hydraulic booster |
| Electric Windows | No |
| Wiper Control Switch | Yes |
| Central Locking | No |
| Noise Insulation | Yes |
| Seat Cover Material | Vinyl |
| Driver Seat Adjustability | Manual |
| Audio | AM/FM Radio, CD Player |
| Dash Lights Control Switch | Yes |
| Instruments | Speedometer, Engine Tachometer, Odometer, Fuel Guage, Coolant Temperature Guage |
Category:
TruckDate:
March 17, 2021
